66KVA Diesel Generator – Perkins Engine – TP66 – Target Power

» Target Power TP66
» 60 kVA Prime / 66 kVA Standby
» Three Phase
» Perkins UK 1103A-33TG2 Diesel Engine
» DataKom, ComAp Or Deep Sea Electronics
» Silent Generator
» Complete with Standby Kit, Ideal for business back-up
» 2 Year Standby Warranty

Designed and manufactured by Target Power Generators Ltd.

Original price was: £11,630.00.Current price is: £9,450.00. ex. VAT - £11,340.00 inc. VAT

unction jack image

MADE BY TARGET POWER

ENQUIRE ABOUT THIS PRODUCT

You may also like…

Description

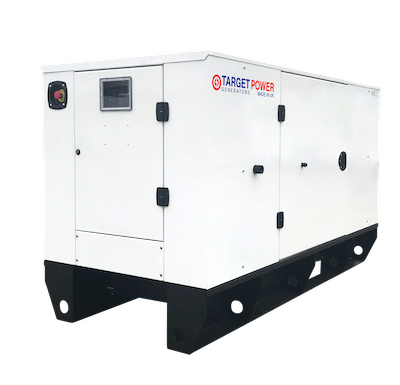

Target Power Generator 66KVA 3 Phase Diesel Generator – Model TP66

As a trusted name in the industry, with over 25 years of experience in manufacturing diesel generators, Target Power Generators proudly presents our high-performance TP-Series Perkins 60 kVA diesel generator, designed to provide reliable standby power when you need it most.

Perkins 60 kVA Industrial 3 Phase Diesel Generator

This industrial 3 phase diesel generator, comes equipped with the renowned Perkins 1103A­-33TG2 engine, coupled to a Stamford, Leroy Somer or Target Power alternator. Controlled by the industry leading control modules such as DataKom & Deep Sea Electronics ensuring exceptional performance.

Low Noise Generator With Large Fuel Tank

The Target Power TP66 is housed into a robust low noise acoustic canopy, with a 105L base fuel tank. The diesel generator is standby ready, fitted with a engine coolant heater, battery charger and circuit breaker as standard.

Full UK Warranty

Our TP66 66 KVA diesel generator comes complete with a UK Nationwide 2 Year standby warranty.

Power Rating Of The TP66

The TP66 produces a prime power rating of 60kVA and a standby power rating of 66kVA. The generator is 50hz, 3 Phase 400-415V and runs at 1500rpm.

Need something with a little bit more power? Then check out our TP88 Generator 80 kVA, powered by a Perkins UK Engine.

Powered By a reliable Perkins 1103A-33TG2 Engine

The Target Power 66kVA standby diesel generator is powered by a reliable 1100 series 1103A-33TG2 3 cylinder Perkins engine. The engines are designed and manufactured at the Perkins factory in Peterborough UK.

Reliable Diesel Generator Control Module:

The generator comes fitted with a DataKom D500 or the Deep Sea Electronics DSE6120 control module at standard. The control module is designed to be easy to use and is perfect for manual or automatic mains failure operation.

The comprehensive control module allows manual start, remote start and displays full engine and alternator parameter monitoring.

You can connect a USB cable to the control module, to further customise the settings to suit a range of applications.

Automatic Transfer Switch Compatible

This generator is automatic transfer switch compatible. Using an optional automatic transfer switch (ATS), the generator can sense when the mains supply fails and automatically transfers the load when the mains power is lost. The generator also transfers the load back again, once the mains comes on. We can supply the ATS panels separate or affix them inside or onto the generator depending on the application required.

Noise Reducing Soundproofed Canopy:

The soundproofed canopy is design to give a low noise level of  84dba @ 1m  and 72dba @ 7m (no load), the canopy is mounted onto a sturdy welded steel base frame, which comes complete with anti-vibration mountings to help aid reduce noise levels.

Thick Galvanised Steel

The acoustic canopy itself is produced from thick galvanised steel, which has been powder coated. All the doors are lockable, providing additional security.

Residential Silencer

The residential silencer is housed within a separate compartment in the canopy, this reduces noise levels. The silencer is also fitted with a rain cap to protect the silencer from the elements.

Super Silent As Option

Target Power also design and manufacture super silent generators, which ideal for applications which require drastic noise reductions, this may be due to the generator being ran in domestic areas, for stage power and rental applications. Our super silent range can reach as little at 65dba @ 1m, based on 0% load in open field conditions.

Built In Fuel Tank:

All of our Target Power Generators come with a robust powered coated base fuel tanks as standard. The TP66 comes with a 105litre tank as standard, however we can upgrade the generator to offer larger base fuel tanks to such as 1000L, 3000L & more, to suit your application.

The fuel is filled internally, however we can fit 3 way valves or automatic fuel filling pumps to allow for external fuel tank connection.

Reliable Diesel Generator For The UK Market:

The Target Power standby diesel generator range of diesel generators are ideal for various critical power, industrial power and commercial applications. Check out some of the key features below-

·      Compliant to European CE Mark and UKCA standards

·      High quality noise educing canopy, designed to produce as little as 72 dBA at 7M (no load)

·      User friendly but feature packed Datacom or Deepsea electronics generator control modules

·      Standby ready, complete with crank battery, battery charger, water jacket heater and circuit breaker

·      Easy lift, lift the generator from under the base or using the designated lifting eyes on the base frame

Learn more about Target Power Generators on our YouTube channel.

Additional information

Key Info

Model Number – TP66
Standby (KVA) – 66KVA
Prime Power (KVA) – 60KVA
3 Phase
Soundproofed Generator
UK Nationwide Warranty
Bunded base fuel tank
UK Specification

Engine Details

Powered by – Perkins 1103A­-33TG2
Number of Cylinders – 3
Engine Cooling System – Water Cooled Engine
Fuel Type – Diesel

Alternator Features

Brand & Model – European Type
Number of Wires – 12
Class – H
Protection – IP23

Standard Features

DSE Control Panel
Forklift space strong enough to support whole generator
Control panel viewing window in a lockable access door
Emergency stop push button mounted on enclosure exterior.
Base fuel tank
Exhaust muffler with rain cap.
Excellent Service and Maintenance Access
Large doors for easy servicing

Measurements

LWH MM – 2250x1000x1670 (estimated)
Weight KG – 1056 (estimated)

Brand

Target Power

Engine

Perkins

KVA Rating

31-60 KVA
