Key Features:
» Target Power TP33
» 30 kVA Prime / 33 kVA Standby
» Three Phase
» Perkins UK 1103-33G Diesel Engine
» DataKom, ComAp Or Deep Sea Electronics
» Silent Generator
» Complete with Standby Kit, Ideal for business back-up
» 2 Year Standby Warranty
Target Power Generator 33KVA 3 Phase Diesel Generator – Model TP33
As a trusted name in the industry, with over 25 years of experience in manufacturing diesel generators, Target Power Generators proudly presents our high-performance TP-Series 33kVA diesel generator, designed to provide reliable standby power when you need it most.
30 kVA Industrial 3 Phase Diesel Generator
This industrial 3 phase diesel generator, comes equipped with the renowned Perkins 1103A-33G engine, coupled to a Stamford, Leroy Somer or Target Power alternator. Controlled by the industry leading control modules such as DataKom & Deep Sea Electronics ensuring exceptional performance.
Low Noise Generator With Large Fuel Tank
The Target Power TP33 is housed into a robust low noise acoustic canopy, with a 69L base fuel tank. The diesel generator is standby ready, fitted with a engine coolant heater, battery charger and circuit breaker as standard.
Full UK Warranty
Our TP33 33KVA diesel generator comes complete with a UK Nationwide 2 Year standby warranty.
Power Rating Of The TP33
The TP33 produces a prime power rating of 30kVA and a standby power rating of 33kVA. The generator is 50hz, 3 Phase 400-415V and runs at 1500rpm.
The Target Power 33kVA standby diesel generator is powered by a reliable 1100 series 1103A-33G 3 cylinder Perkins engine. The engines are designed and manufactured at the Perkins factory in Peterborough UK.
Reliable Diesel Generator Control Module:
The generator comes fitted with a DataKom D500 or the Deep Sea Electronics DSE6120 control module at standard. The control module is designed to be easy to use and is perfect for manual or automatic mains failure operation.
The comprehensive control module allows manual start, remote start and displays full engine and alternator parameter monitoring.
You can connect a USB cable to the control module, to further customize the settings to suit a range of applications.
Automatic Transfer Switch Compatible
This generator is automatic transfer switch compatible. Using an optional automatic transfer switch (ATS), the generator can sense when the mains supply fails and automatically transfers the load when the mains power is lost. The generator also transfers the load back again, once the mains comes on. We can supply the ATS panels separate or affix them inside or onto the generator depending on the application required.

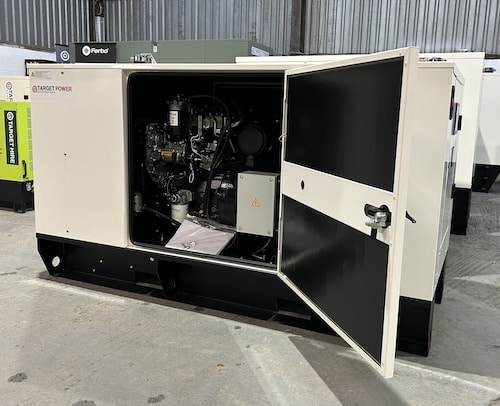

Noise Reducing Soundproofed Canopy:
The soundproofed canopy is design to give a low noise level of 84dba @ 1m and 72dba @ 7m (no load), the canopy is mounted onto a sturdy welded steel base frame, which comes complete with anti-vibration mountings to help aid reduce noise levels.
Thick Galvanised Steel
The acoustic canopy itself is produced from thick galvanised steel, which has been powder coated. All the doors are lockable, providing additional security.
Residential Silencer
The residential silencer is housed within a separate compartment in the canopy, this reduces noise levels. The silencer is also fitted with a rain cap to protect the silencer from the elements.
Super Silent As Option
Target Power also design and manufacture super silent generators, which ideal for applications which require drastic noise reductions, this may be due to the generator being ran in domestic areas, for stage power and rental applications. Our super silent range can reach as little at 65dba @ 1m, based on 0% load in open field conditions.
Built In Fuel Tank:
All of our Target Power Generators come with a robust powered coated base fuel tanks as standard. The TP33 comes with a 69litre tank as standard, however we can upgrade the generator to offer larger base fuel tanks to such as 1000L, 3000L & more, to suit your application.
The fuel is filled internally, however we can fit 3 way valves or automatic fuel filling pumps to allow for external fuel tank connection.
Reliable Diesel Generator For The UK Market:
The Target Power standby diesel generator range of diesel generators are ideal for various critical power, industrial power and commercial applications. Check out some of the key features below-
· Compliant to European CE Mark and UKCA standards
· High quality noise educing canopy, designed to produce as little as 72 dBA at 7M (no load)
· User friendly but feature packed Datacom or Deepsea electronics generator control modules
· Standby ready, complete with crank battery, battery charger, water jacket heater and circuit breaker
· Easy lift, lift the generator from under the base or using the designated lifting eyes on the base frame
Learn more about Target Power Generators on our YouTube channel.
Additional information
Key Info
Model Number – TP33
Standby (KVA) – 33KVA
Prime Power (KVA) – 30KVA
3 Phase
Soundproofed generator
UK Nationwide Warranty
Water Jacket Heater and Battery Charger
Engine Details
Powered by – Perkins 1103A-33G
Number of Cylinders – 3
Engine Cooling System – Water Cooled Engine
Fuel Type – Diesel
Alternator Details
Brand & Model – European Type
Number of Wires – 12
Class – H
Protection – IP23
Standard Features
DSE Control Panel
Forklift space strong enough to support whole generator
Control panel viewing window in a lockable access door
Emergency stop push button mounted on enclosure exterior.
Base fuel tank
Exhaust muffler with rain cap.
Excellent Service and Maintenance Access
Large doors for easy servicing
Measurements
LWH MM – 2100 x 950 x 1690 (estimated)
Weight KG – 903 (estimated)
Engine
Perkins
Brand
Target Power
KVA Rating
21-30 KVA
With over 25 years of manufacturing experience, we can fully customise diesel generators to suit your application requirements. We specialize in upgrading diesel generators for various applications worldwide.
Some of our generator customisations include:
Remote Monitoring: Monitor generator performance remotely using Deepsea Electronics, ComAP, or Datakom gateways via SMS and Web.
Optional Plug Sockets: Custom plug socket combinations to suit your specific application requirements.
Fuel Tank Solutions: Bespoke integral and external fuel tanks designed for longevity and efficiency. We stock and distribute a wide range of quality external Diesel fuel tanks, view the range here.
Control Panel Upgrades: Custom control panels for specific operational requirements, with manual, auto start, or automatic mains failure modes.
Super Silent and Ultra Silent Options: Upgrade canopies and bases for reduced noise levels. Learn more about our super silent generators here.
Mobile Trailers: Trailer generators, mobile generators, and rental specification generators for adaptable needs. We can mount all of our generators onto on road and off road trailers. View our range of mobile generator trailers here.
Removable Doors: Removable quick-release doors for simplified maintenance, ideal for tight spaces.
Synchronization: Synchronize up to 36 diesel generators with a synchronizing controller for power load doubling or load sharing.
Automatic Transfer Switches: Detects mains failure, starts the generator, transfers the load, and shuts down the generator when power returns. View our range of Automatic Transfer Switch’s here.
